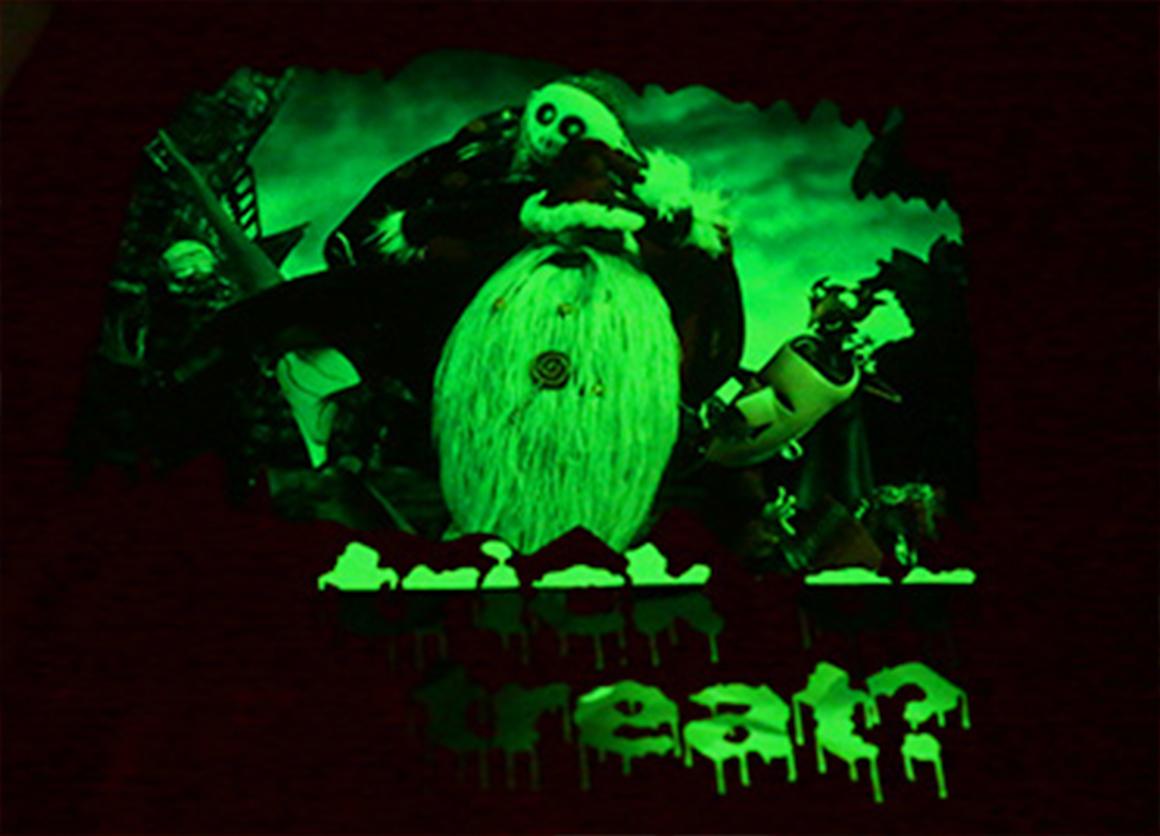

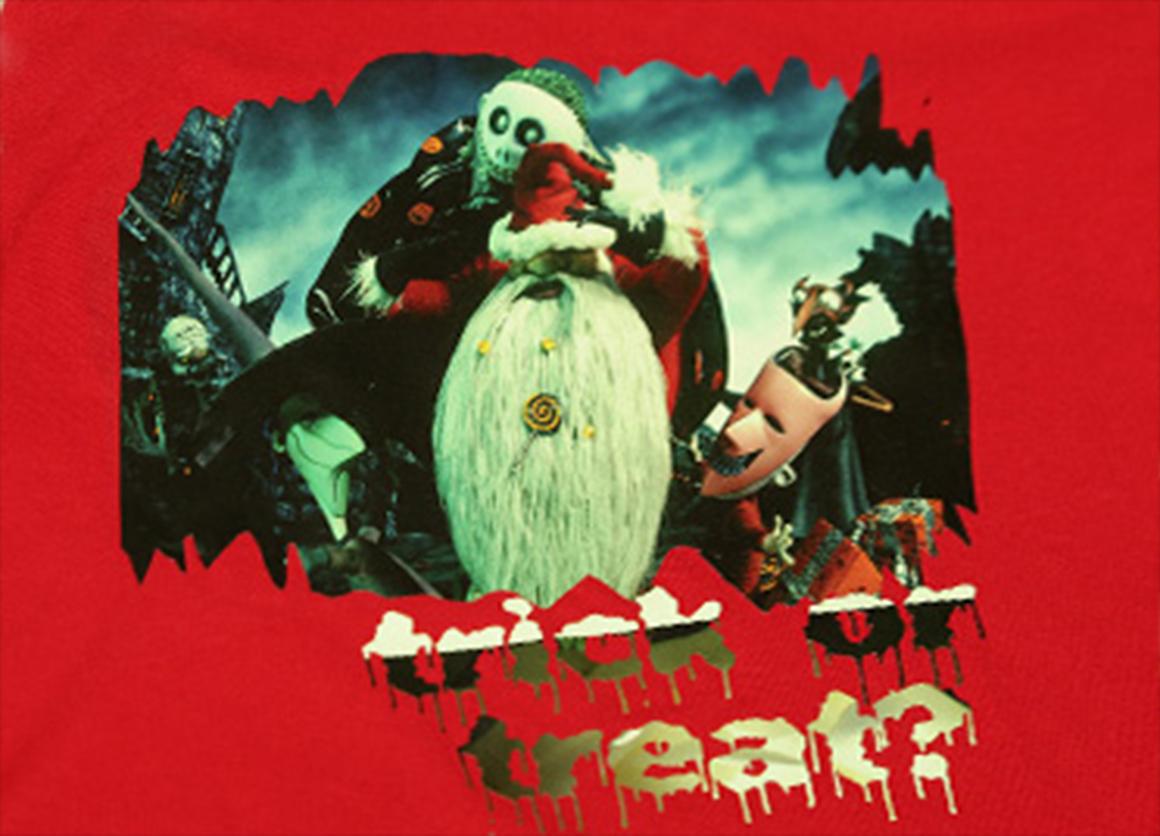

K-PRINT GLOW IN THE DARK

The best printable heat transfer vinyl glow in the dark HTV from CDFLEX, a heat transfer vinyl manufacture.
Adds this beautiful luminous heat transfer vinyl that is something special to your costumes and special event wear. CDFLEX's printable glow in the dark HTV provides a luminous long lasting glow.

VA.pdf첨부파일

WE RECOMMEND THE FOLLOWING
CONDITIONS TO ACHIEVE THE BEST RESULTS WE

  • Temperature

    150℃

  • Pressure

    34psi

  • Time

    10sec

  • Peel Type

    Hot peel

  • Washing

    machine and handwash only

RECOMMENDED FABRICS

COTTON,POLYESTER,POLY/COTTON BLENDS

CUTTING GUIDELINES *If you have dIFferent kinds of cutting machine, you should always test cut prior to any production run.

PLOTTER BLADE FORCE OFFSET SPEED DEPTH
ROLAND GX-24 45º 90~130g/f 0.250mm 15cm/sec 0.3~0.5mm
PRINTER TEMP PASS
POLAND VP-540 PRINT 38±2 DRY 40±2 8

HOW TO USE

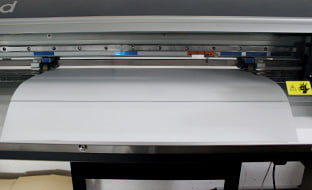

  • SET MATERIAL

    Feed the printable HTV vinyl material into the plotter machine hotmelt side facing up.

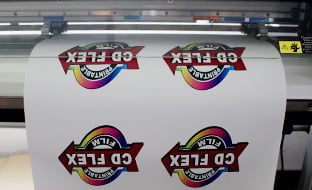

  • PRINT & CUTTING

    Select an existing design or create your own on the computer (NB : Design must be mirrored.)
    Change the machine settings according to the heat transfer vinyl material's conditions (If unsure, see the PDF provided above.)

  • WEEDING

    On a flat surface take a weeder and remove any parts not necessary for your design of heat transfer vinyl

  • TRANSFER

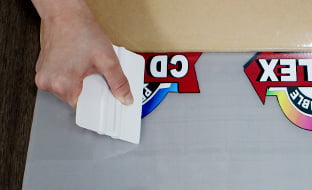

    In order to remove the design from PET, it must be attach to the adhesive side of MASK PAPER.
    After application, it's essential to ensure there are no air bubbles and the design is firmly stuck to the adhesive side.

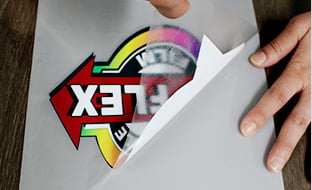

  • PEEL OFF PET

    Peel off PET from the transferred printable HTV vinyl to apply to your garment.

  • PREHEAT & POSITION

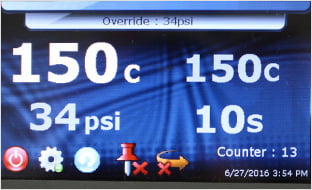

    The ideal heating, pressure and time conditions for the pressing of a printable HTV vinyl can be seen in the photo above.

  • HEAT APPLY

    Preheat the garment and arrange the weeded design in your desired placement and then press the printable HTV vinyl.

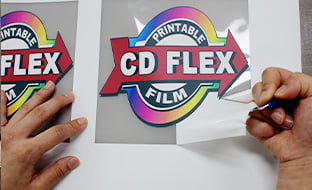

  • PEEL OFF

    Gently remove Pet from the top side of the design.
